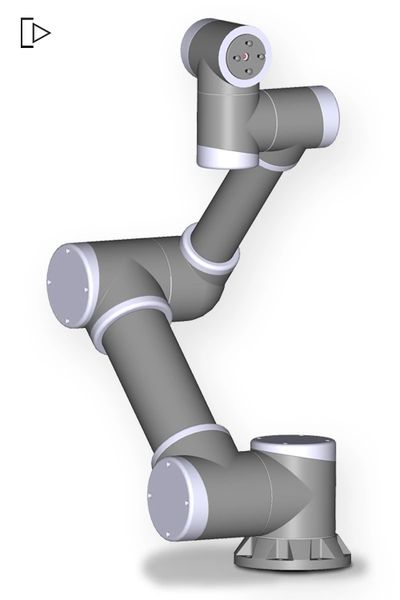

Collaborative Robotic Arm EB-310

New optimized version of the EB-300 model

More robust and very solid with inserts and metric screws. Available in two sizes, 220mm & 120mm.


Introducing  the EB-310 Collaborative Robotic Arm – This model works with 3 NEMA17  motors and 3 NEMA23 motors with the EBA-17 and EBA-23 planetary gear  actuators giving it strong holding capabilities. It is articulated with 6  axes of movement.


Perfect for robotics enthusiasts and students.


STEP File BUY

Software & Firmware SEE MORE

Filaments

  • 3D filament 1.75, 1KG, PLA+ or ABS or PA-CF, Black (x2)
  • 3D filament 1.75, 1KG, PLA+ or ABS or PA-CF, Grey (x1)

You will need

  • NEW UPDATED 2024 - Planetary Gears Actuator EBA-17 for Nema 17  Thingiverse TBR
  • NEW UPDATED 2024 - Planetary Gears Actuator EBA-23 for Nema 23  Thingiverse TBR

Tools required for assembly

  • Soldering Iron
  • Hex key M3
  • Hex key M4

Hardware

Screws, nuts & washers

  • M3 Screws M3x12mm  (12 PCS)
  • M3 Screws M3x16mm  (36 PCS)
  • M4 Screws M4x12mm  (34 PCS)
  • M4 Screws M4x16mm  (12 PCS)
  • M4 Screws M4x25mm  (20 PCS)
  • M4 Nuts   (20 PCS)


Inserts

  • M3 Inserts M3x6mm   (24 PCS)
  • M4 Inserts M4x8mm   (20 PCS)


Pipes (you can also print the pipes)

  • 3" black ABS pipe (cut a length of 220mm or 120mm) Amazon
  • 2" black ABS pipe (cut a length of 220mm or 120mm) Amazon

Electromechanical

  • Nema 17 Stepper Motor, 60mm, Rod diameter Φ5mm (x3) Amazon Stepperonline
  • Nema 23 Stepper Motor, 82mm, Rod diameter Φ8 mm or Φ6.35 mm  (x2) Amazon Stepperonline
  • Nema 23 Stepper Motor, 76mm, Rod diameter Φ8 mm or Φ6.35 mm (x1) Amazon Stepperonline

Electronics

  • Microcontroller Arduino MEGA 2560 (x1) Amazon
  • TB6600 Motor Driver (x6) Amazon
  • Power Supply, 24V 15A 360W (x1) Amazon
